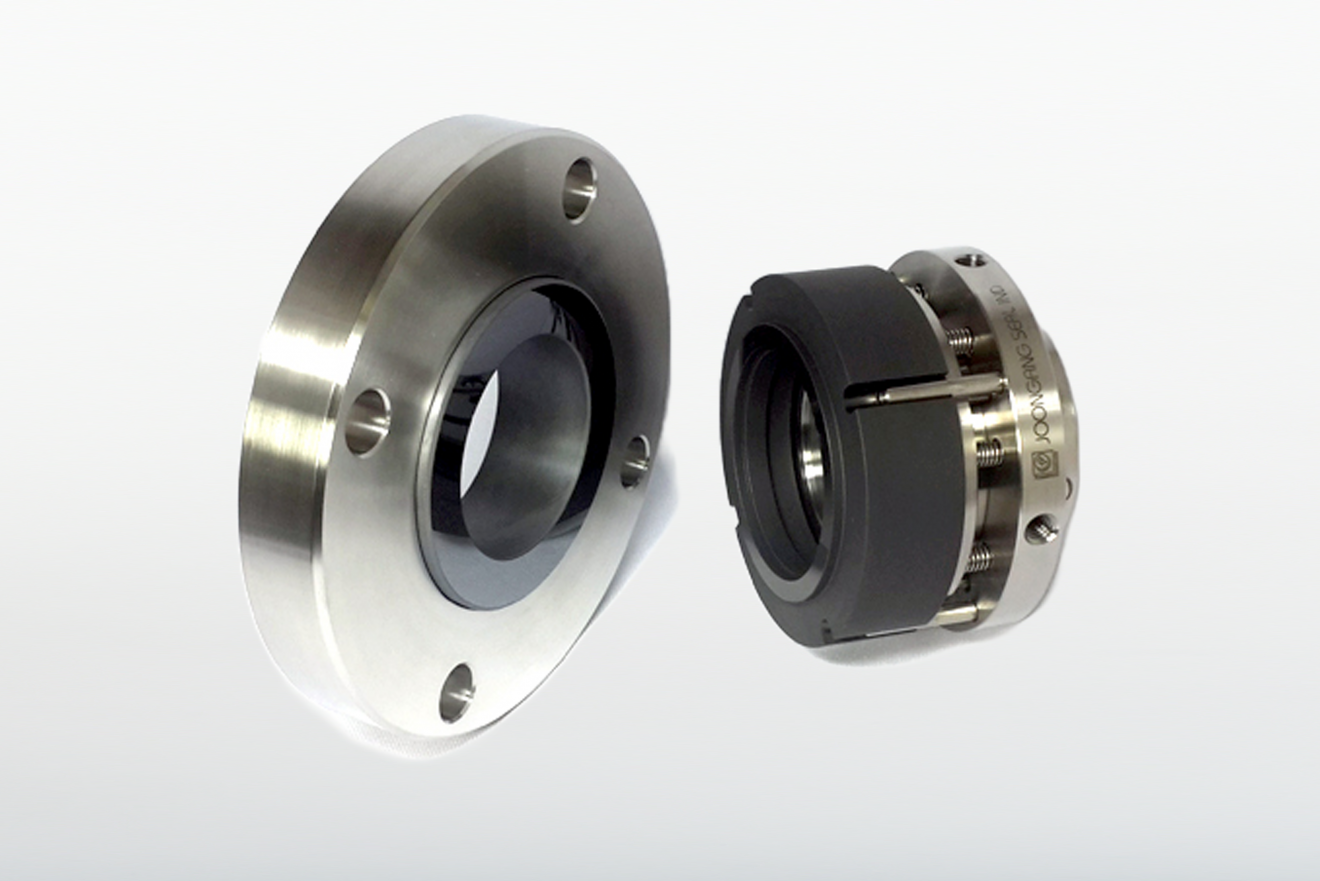

DRY RUNNING SEALS
이메일무단수집거부
이메일주소 무단수집을 거부합니다.
본 웹사이트에 게시된 이메일 주소가 전자우편 수집 프로그램이나 그 밖의 기술적 장치를 이용하여 무단으로 수집되는 것을 거부하며, 이를 위반시 정보통신망법에 의해 형사 처벌됨을 유념하시기 바랍니다.
Application
-
- Single Seal For Dry Running.
Operating Conditions
-
- Temperatures :120 ℃
- Pressure : 6 barG
- Speed : Up to 350 RPM
Design Features
-
- A seal that is externally mounted and internally pressurized.
- Double balanced to handle either inside or outside pressure.
- A seal that is a contacting dry running seal, eliminating the need for a sealant system.
- No product contamination by the sealant.
- No sealant system maintenance.
Industries Served
-
- Chemical Processing
- Food Processing
- Heat Transfer
- Marine
- Mixers and Agitator
- Power Generation
- Water System
Table
-
Part No. Part Name 1 Mating Ring 2 Seal Ring 3 Mating Ring Packing 4 Shaft Packing 4A Collar Packing 5 Comp. Ring 6 Spring 7 Collar 8 Set Screw 9 Spring Pin 10 Gland Ring C Cushion Ring D Drive Pin

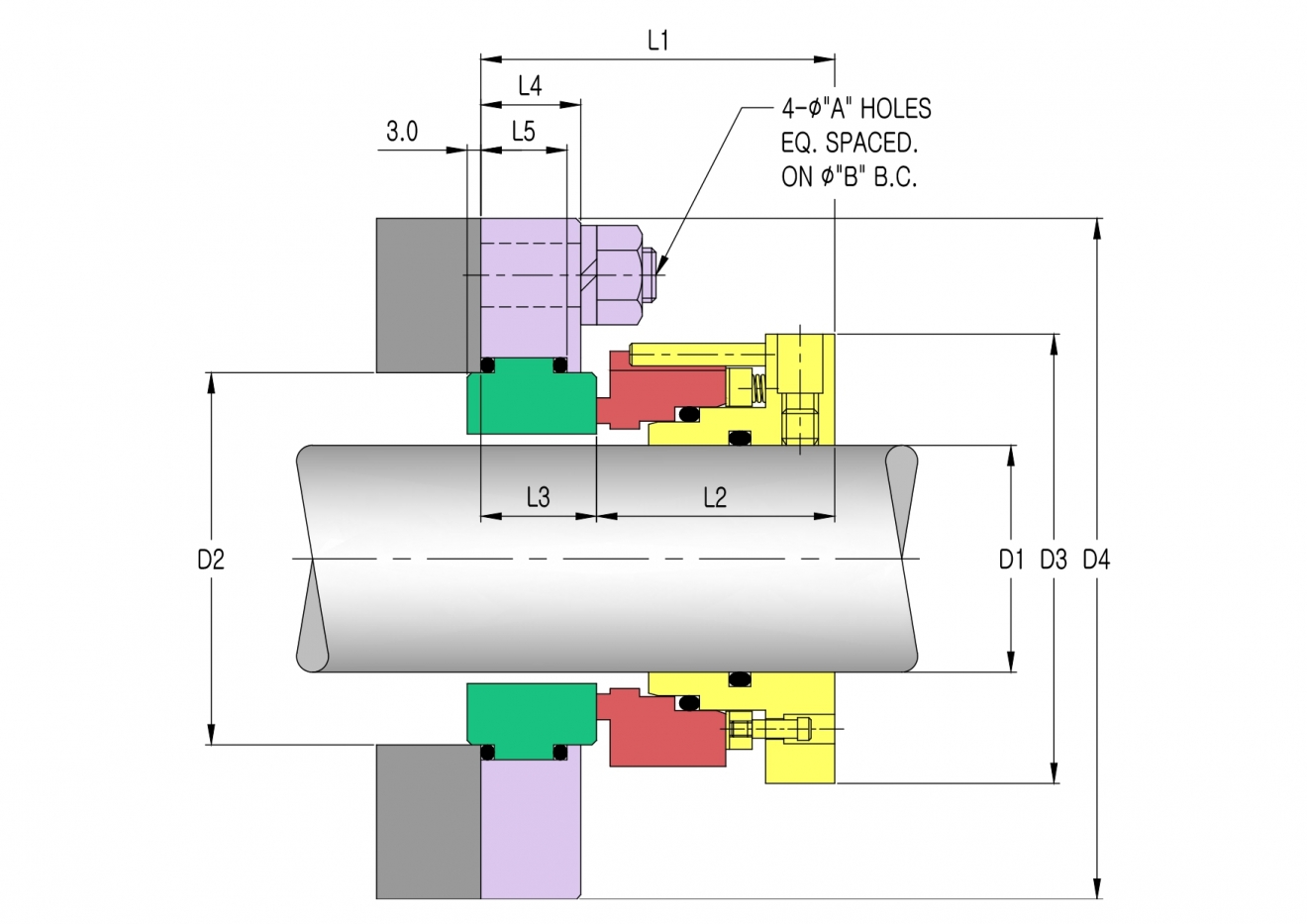

Drawing
-
