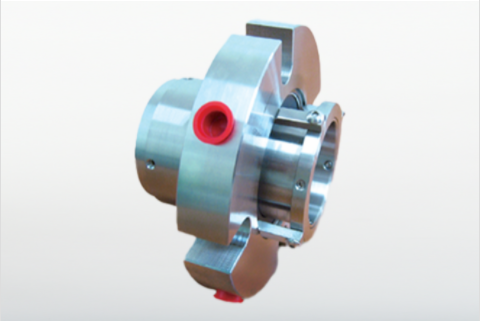

CARTRIDGE SEALS
이메일무단수집거부
이메일주소 무단수집을 거부합니다.
본 웹사이트에 게시된 이메일 주소가 전자우편 수집 프로그램이나 그 밖의 기술적 장치를 이용하여 무단으로 수집되는 것을 거부하며, 이를 위반시 정보통신망법에 의해 형사 처벌됨을 유념하시기 바랍니다.
Application
-
- An economical single pusher seal design combined with cartridge insrallation simplicity for wide ranges of services and industries, such as chemical processing, water treatment, sewage plants, and pulp and paper applications.
- Excellent performance is maintained under various operating conditions.
- Easy to install & uninstall(Cartridge Type)
Operating Conditions
-
- Temperatures : Up to 215 ℃
- Pressure : up to 25 barG
- Viscosity : 23 m/s
Industries Served
-
- Chemical Processing
- Food Processing
- Heat Transfer
- Marine
- Mixers and Agitator
- Power Generation
- Water System
Product Description
-
Table
-
Part No. Part Name 1 Mating Ring 2 Seal Ring 3 / 3A Mating Ring Packing 4 Shaft Ring Packing 5 Comp.Ring 5P Drive Pin 6 Spring 7 Collar 8 Set Screw 10 Gland Ring 11 Gasket 12 Hold Pin 13 Assembly Jig 14 Jig Bolt 15 Retaining Ring 20 Sleeve 21 Sleeve Packing 22 Collar 23 Set Screw B Bushing

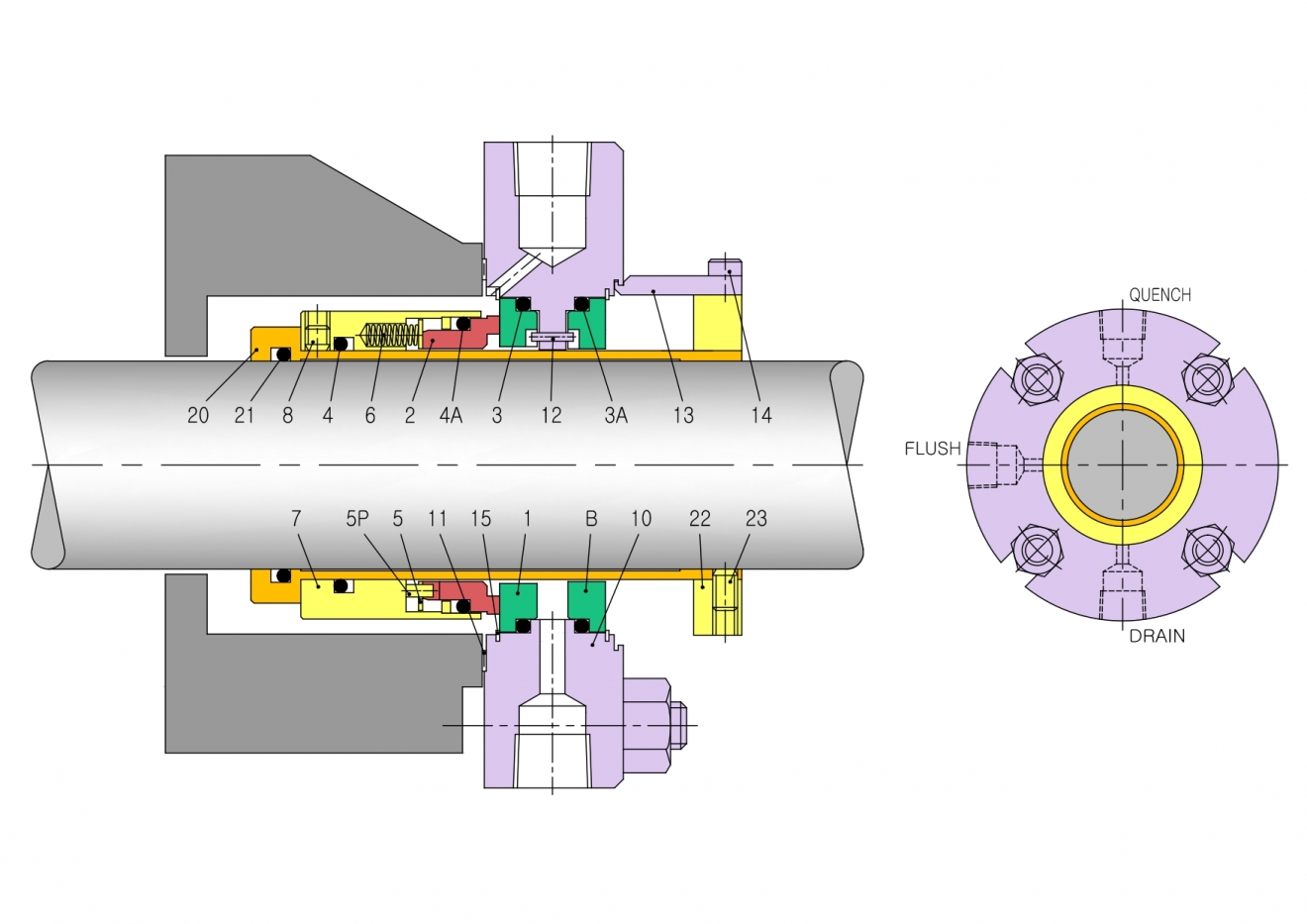

Drawing
-
