Application

  • An economical duoble pusher seal design combined with cartridge insrallation simplicity for wide ranges of services and industries, such as chemical processing, water treatment, sewage plants, and pulp and paper applications.
  • Excellent performance is maintained under various operating conditions.
  • Easy to install & uninstall(Cartridge Type)
  • Much strong against toxic fluid as it is structured in double seal.

Operating Conditions



  • Temperatures : Up to 215 ℃
  • Pressure : up to 25 barG
  • Viscosity : 23 m/s



Industries Served

  • Chemical Processing
  • Food Processing
  • Heat Transfer
  • Marine
  • Mixers and Agitator
  • Power Generation
  • Water System
  • Product Description





    Table

    Part No. Part Name
    1 / 1A Mating Ring
    2 / 2A Seal Ring
    3 / 3A Mating Ring Packing
    4 / 4A Shaft Packing
    5 / 5A Comp.Ring
    5P / 5A Drive Pin
    6 / 6A Spring
    7 / 7A Collar
    8 / 8A Set Screw
    10 Gland Ring
    11 Gasket
    12 Hold Pin
    13 Assembly Jig
    14 Jig Bolt
    15 Retaining Ring
    20 Sleeve
    21 Sleeve Packing

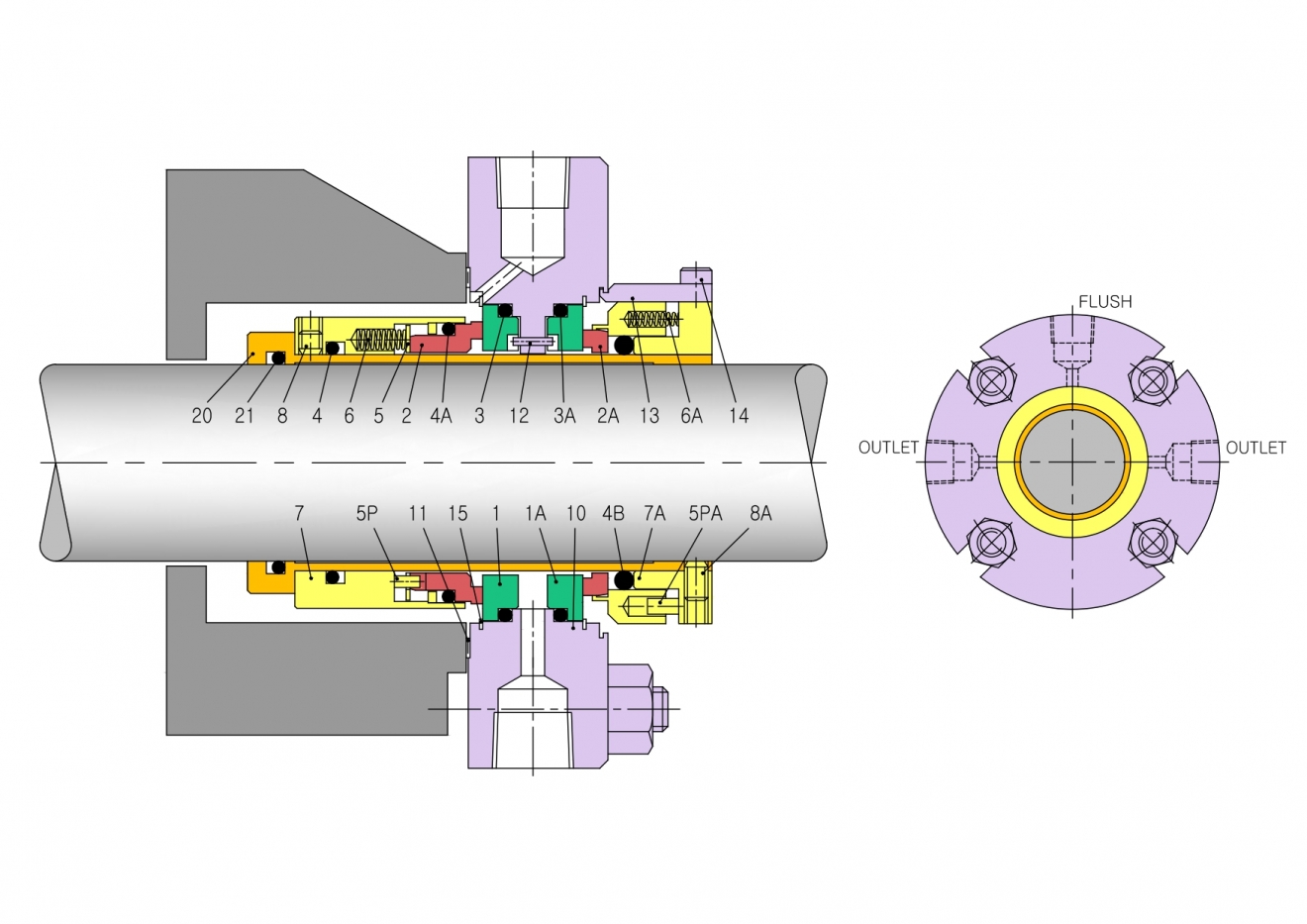

    Drawing
