HBR
Product
Provide Wolrd Class Parts and Engineering Service.
NON-PUSHER SEALS
이메일무단수집거부
이메일주소 무단수집을 거부합니다.
본 웹사이트에 게시된 이메일 주소가 전자우편 수집 프로그램이나 그 밖의 기술적 장치를 이용하여 무단으로 수집되는 것을 거부하며, 이를 위반시 정보통신망법에 의해 형사 처벌됨을 유념하시기 바랍니다.
Application
-
- HBR type is well designed to meet all bellows seal's characteristics such as precision, vibration absorption, simple construction, variety temperature condition and so on.
- Graphite ring is used as a Secondary Seal and is suitable for high temperature.
- As there is nothing to hang up, bellows seal can be maintained with safety & better life time.
- Excellent performance is maintained under various operating conditions.
Operating Conditions
-
- Temperatures :-75 ℃ to 400 ℃
- Pressure : F.V. to 25 barG
- Viscosity : 1,000 cP
- Slurry : max. 0.5%
Design Features
-
- Compact Designs
- Grapthite Ring Secondary Seal
Industries Served
-
- Chemical Processing
- Gas Compression
- Industrial Blowers and Fans
- Paint and Ink
- Petrochemical Processing
- Power Generation
Table
-
Part No. Part Name 1 Mating Ring 2 Seal Ring 3 Mating Ring Packing 4 Collar Packing 5 Face End 6 Bellows 7 Collar End 7D Collar 8 Set Screw 9 Bolts

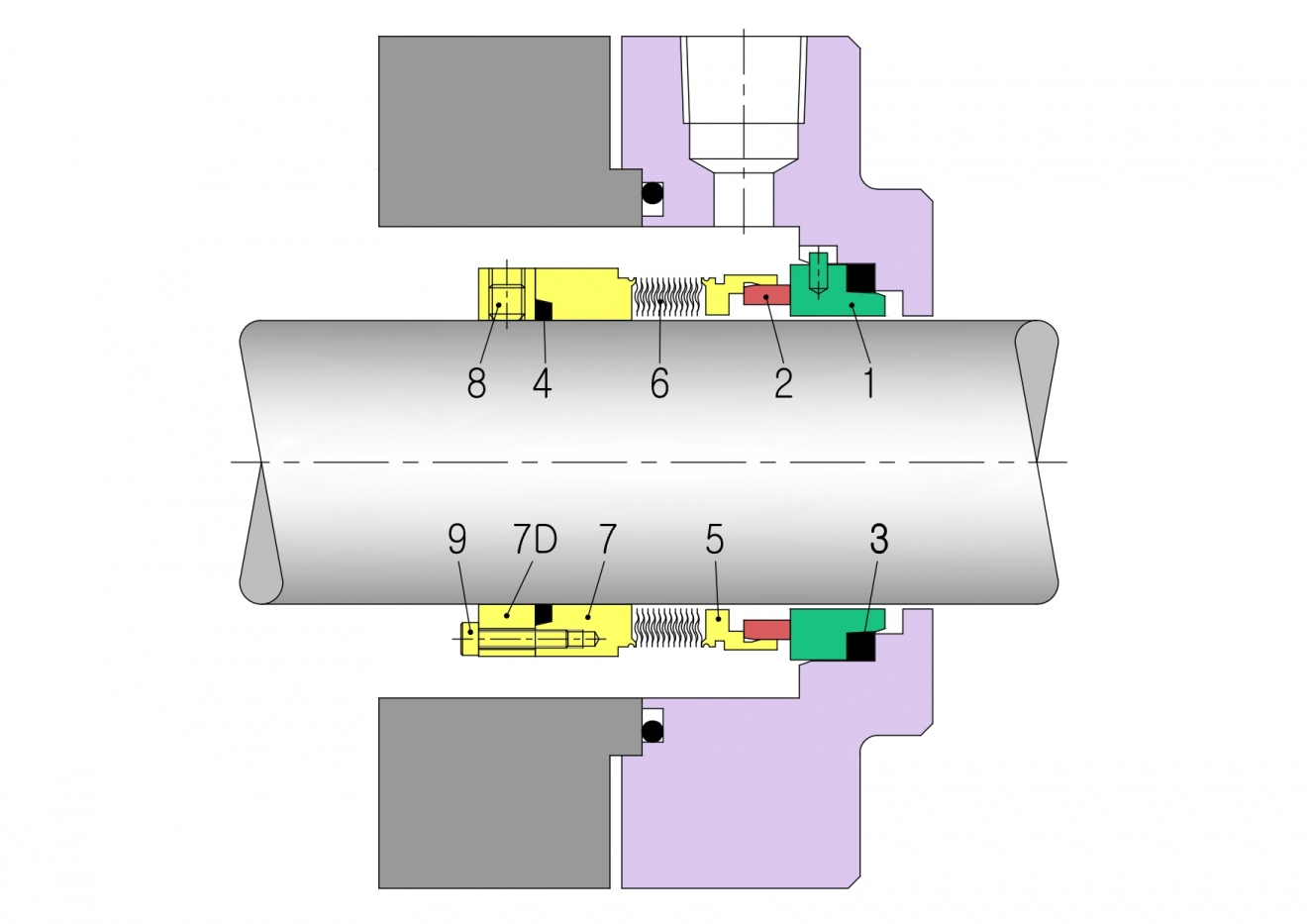

Drawing
-
