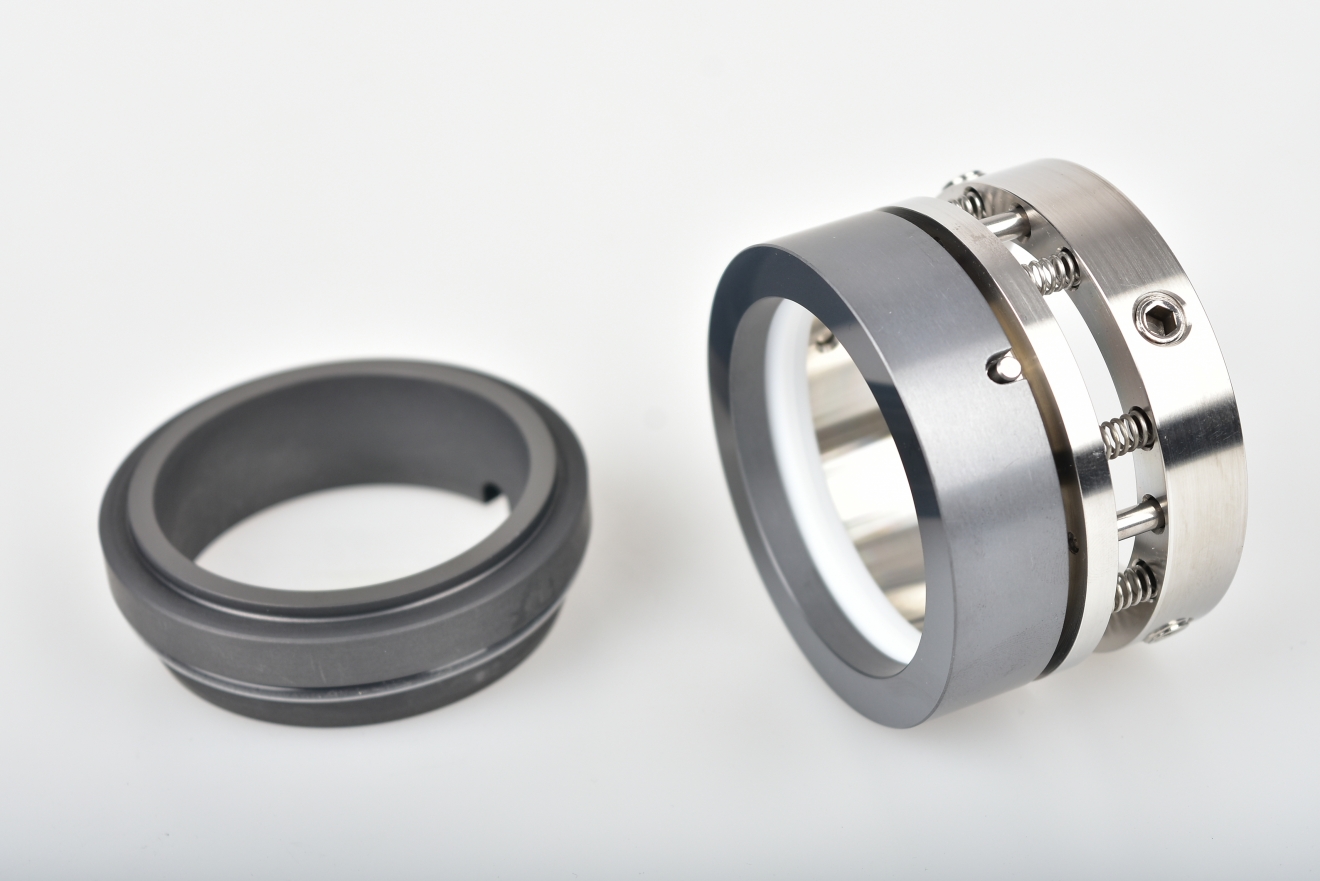

PUSHER SEALS
이메일무단수집거부
이메일주소 무단수집을 거부합니다.
본 웹사이트에 게시된 이메일 주소가 전자우편 수집 프로그램이나 그 밖의 기술적 장치를 이용하여 무단으로 수집되는 것을 거부하며, 이를 위반시 정보통신망법에 의해 형사 처벌됨을 유념하시기 바랍니다.
Application
-
Rugged mechanical seals are available in a wide variety of elastomers for handling practically every industrial fluid.
It is a seal tailored to DIN24960 with Multi Spring.
- General chemical applications oil refining, petrochemical, and pharmaceutical industries.
- Suitable for use with corrosive fluid.
- Mechanical drive design reduces slippage on shaft and sleeve to eliminate galling and premature wear.
- Lapping process results in high precision finish with optimal flatness.
- Compact design permits use in all types of rotating equipment, centrifugal pumps.
- The applied design can be used in a mixers and agitators.
Operating Conditions
-
- Temperatures : -40 ℃ to 180 ℃
- Pressure : 20 barG
- Speed : Up to 23 m/s
Design Features
-
- Compact Designs
- PTFE V-Ring Secondary Seal
- Multi Spring Design Ensures
- DIN 24960/ISO 3069 Stuffing Box Fit
Product Description
-
- General chemical applications oil refining, petrochemical, and pharmaceutical industries.
- Suitable for use with corrosive fluid.
- By choosing suitable component materials, the seals can be adapted to operate with a wide range of liquids and operating conditions.

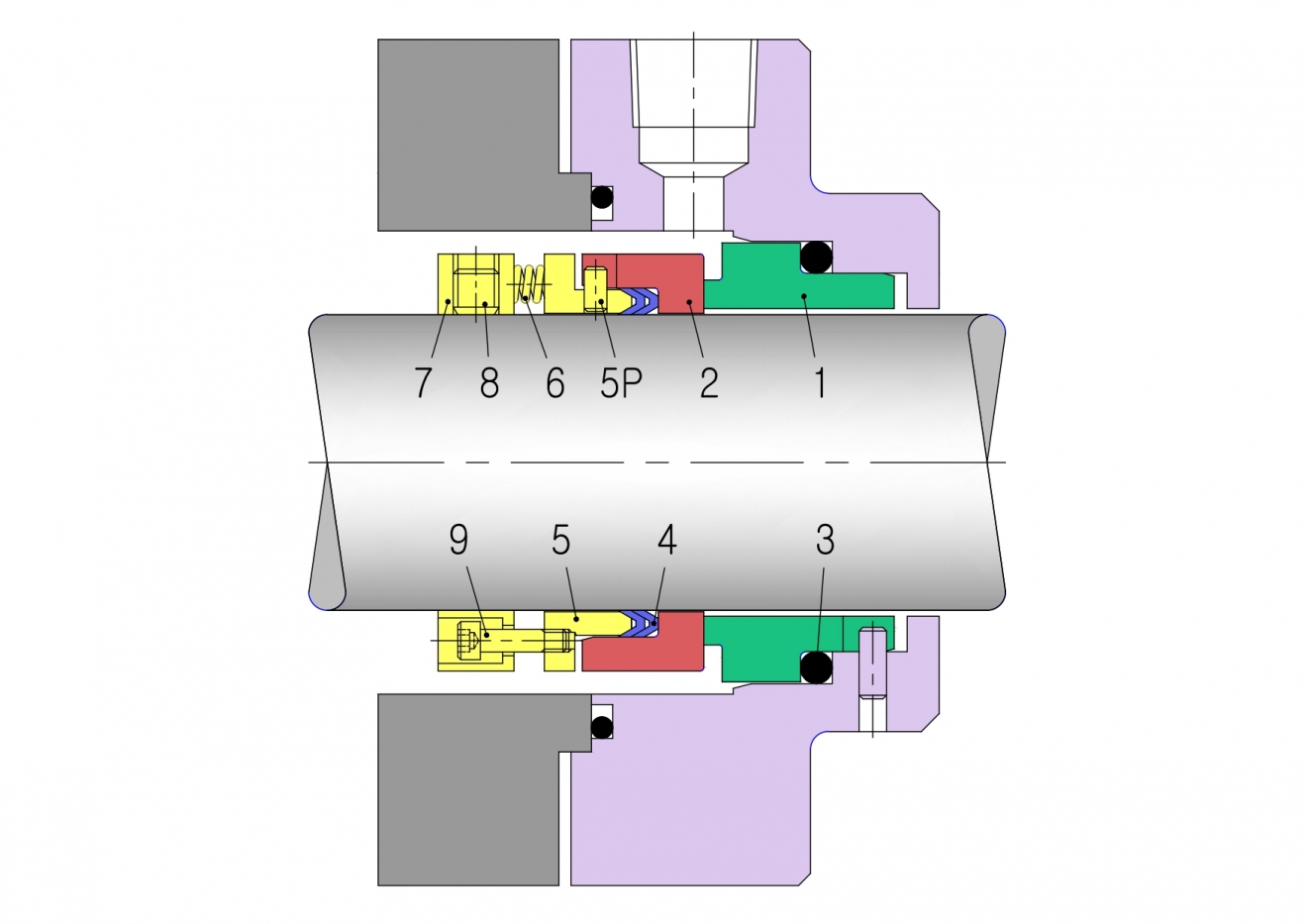

Table
-
Part No. Part Name 1 Mating Ring 2 Seal Ring 3 Mating Ring Packing 4 Shaft Packing 5 Comp. Ring 5P Drive Pin 6 Spring 7 Collar 8 Set Screw 9 Spring Pin
Drawing
-
