Rugged mechanical seals are available in a wide variety of elastomers for handling practically every industrial fluid.

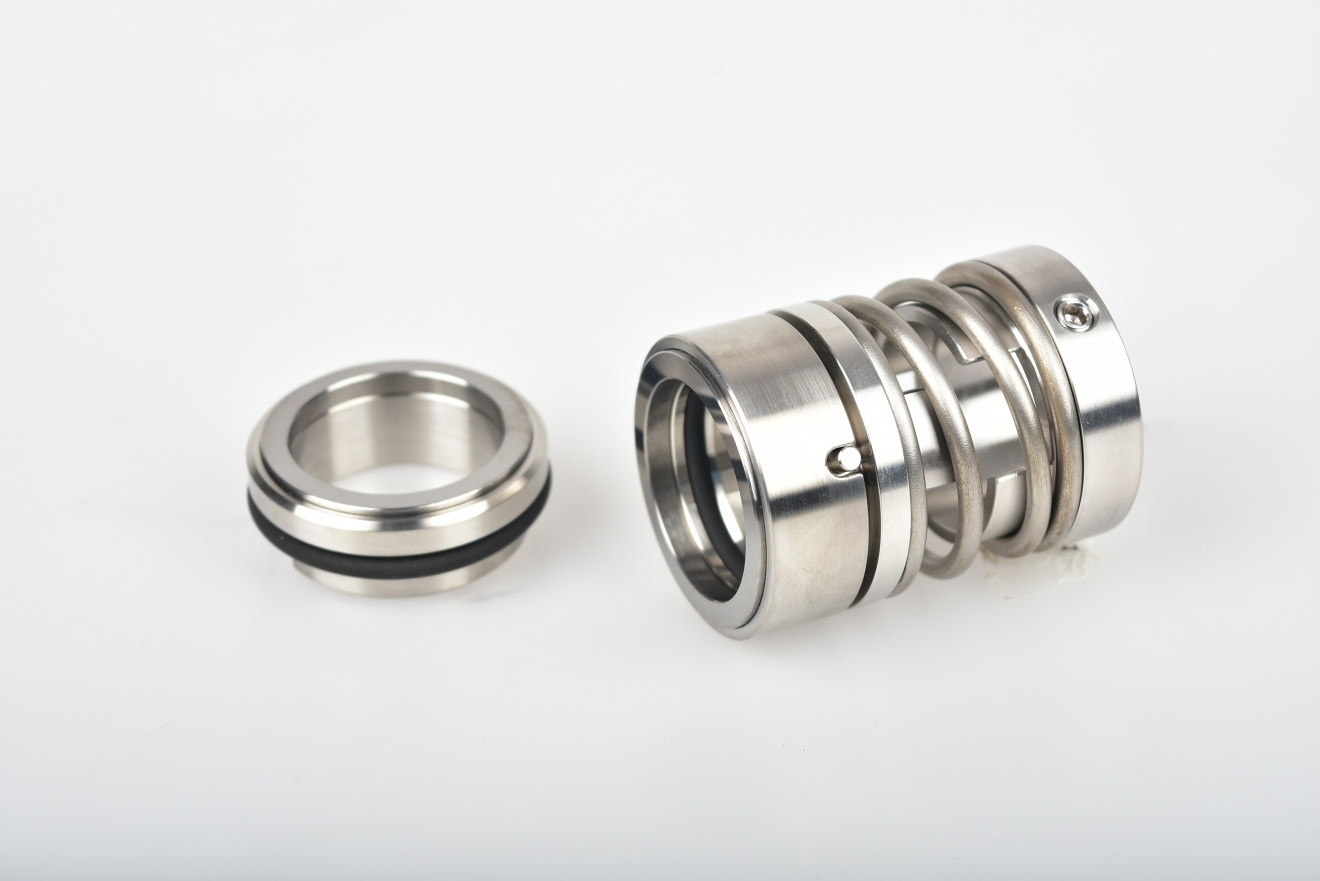

  As the type SL1/Sl2 is unbalanced seal utilizing mono spring, it has a variety range of application such as

  transfering highviscosity fluid containing abrasive slurry.

  The compression unit is suitable for high-viscosity fluid as it has the cluch driving machanism Nevertheless,

  it cannot be applied to high speed rotation.

• General industrial applications including chemical processing, food and beverage, petrochemical processing, pharmaceutical, wastewater and power generation.
• Mechanical drive design reduces slippage on shaft and sleeve to eliminate galling and premature wear.
• Lapping process results in high precision finish with optimal flatness.
• Compact design permits use in all types of rotating equipment, centrifugal pumps.
• The applied design can be used in a mixers and agitators.

• Temperatures : -40 ℃ to 200 ℃
• Pressure : 10 barG
• Viscosity : 150,000 cP
• Slurry : max. 7%

• Compact Designs
• Elastomer O-Ring Secondary Seal
• Multi Spring Design Ensures
• DIN 24960/ISO 3069 Stuffing Box Fit


•   Acids
•   Aqueous Solutions
•   Chemicals
•   Corrosives
