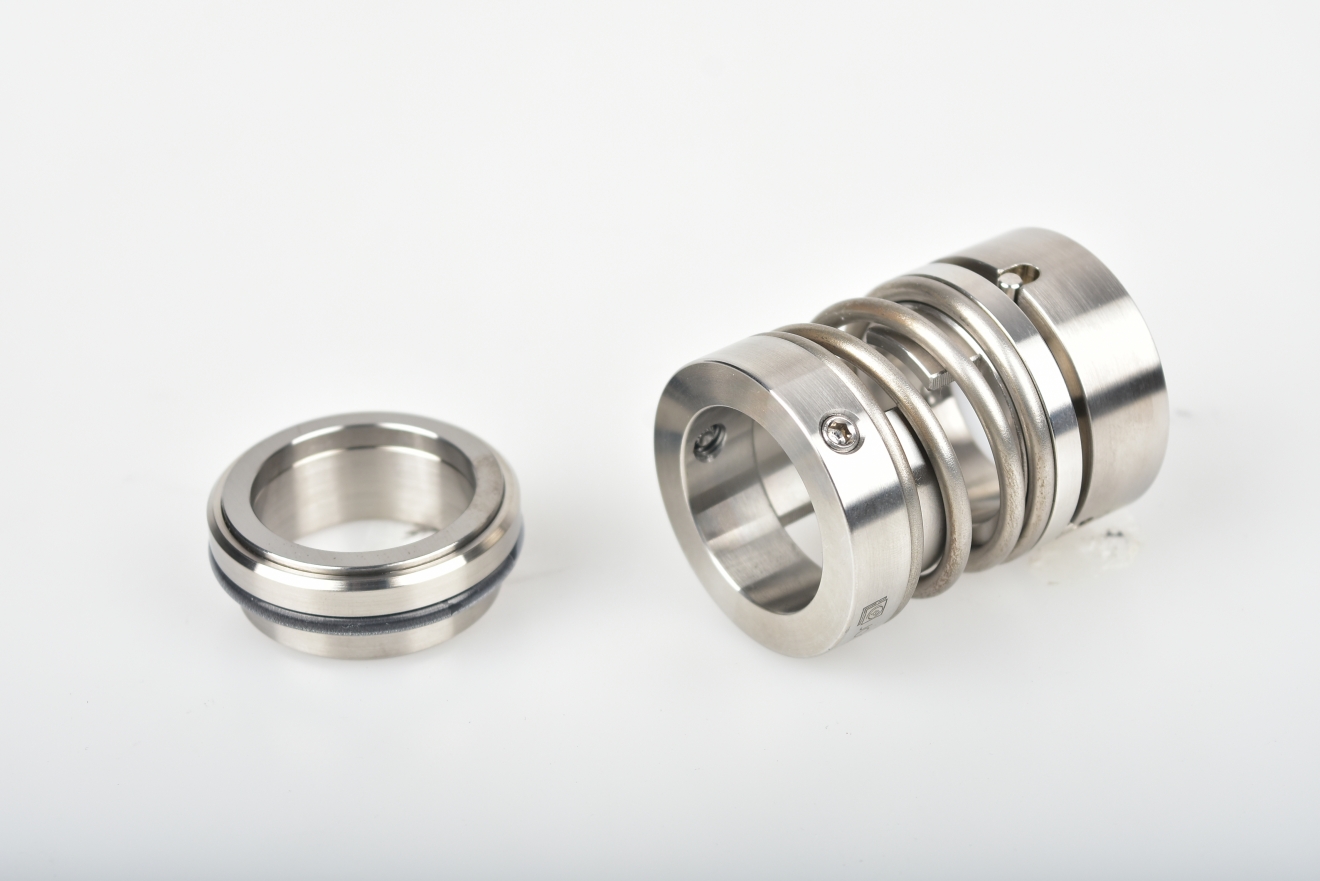

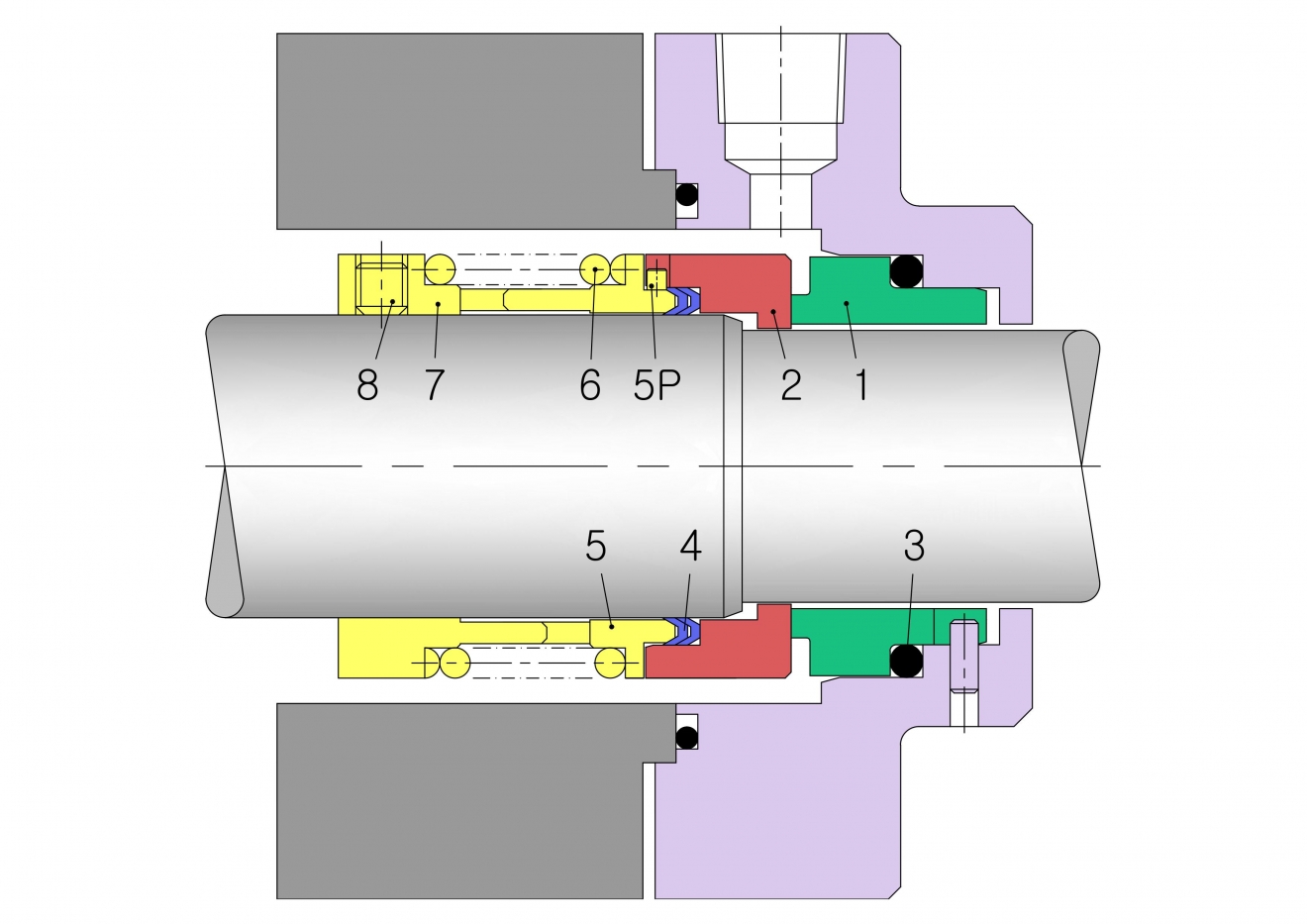

As the type SL3/SL4 is unbalanced seal utilizing mono spring, it can be applied to transfering the fluid having high viscosity

or abrasive slurry.

The compression unit is suitable for high-viscosity fluid as it has the cluch driving machanism, Due to balanced design,

more stable sealing is available than the type SL1, SL2 at high pressure Nevertheless,

it cannot be applied to high speed rotation.

• General industrial applications including chemical processing, food and beverage, petrochemical processing, pharmaceutical, wastewater and power generation.
• Mechanical drive design reduces slippage on shaft and sleeve to eliminate galling and premature wear.
• Lapping process results in high precision finish with optimal flatness.
• Compact design permits use in all types of rotating equipment, centrifugal pumps.
• The applied design can be used in a mixers and agitators.

• Temperatures : -40 ℃ to 180 ℃
• Pressure : 30 barG
• Viscosity : 150,000 cP
• Slurry : max. 7%

•   Compact Design
•   PTFE V-Ring Secondary
•   Mono Spring Design
•   DIN 2496/ISO3069 Stuffing Box
