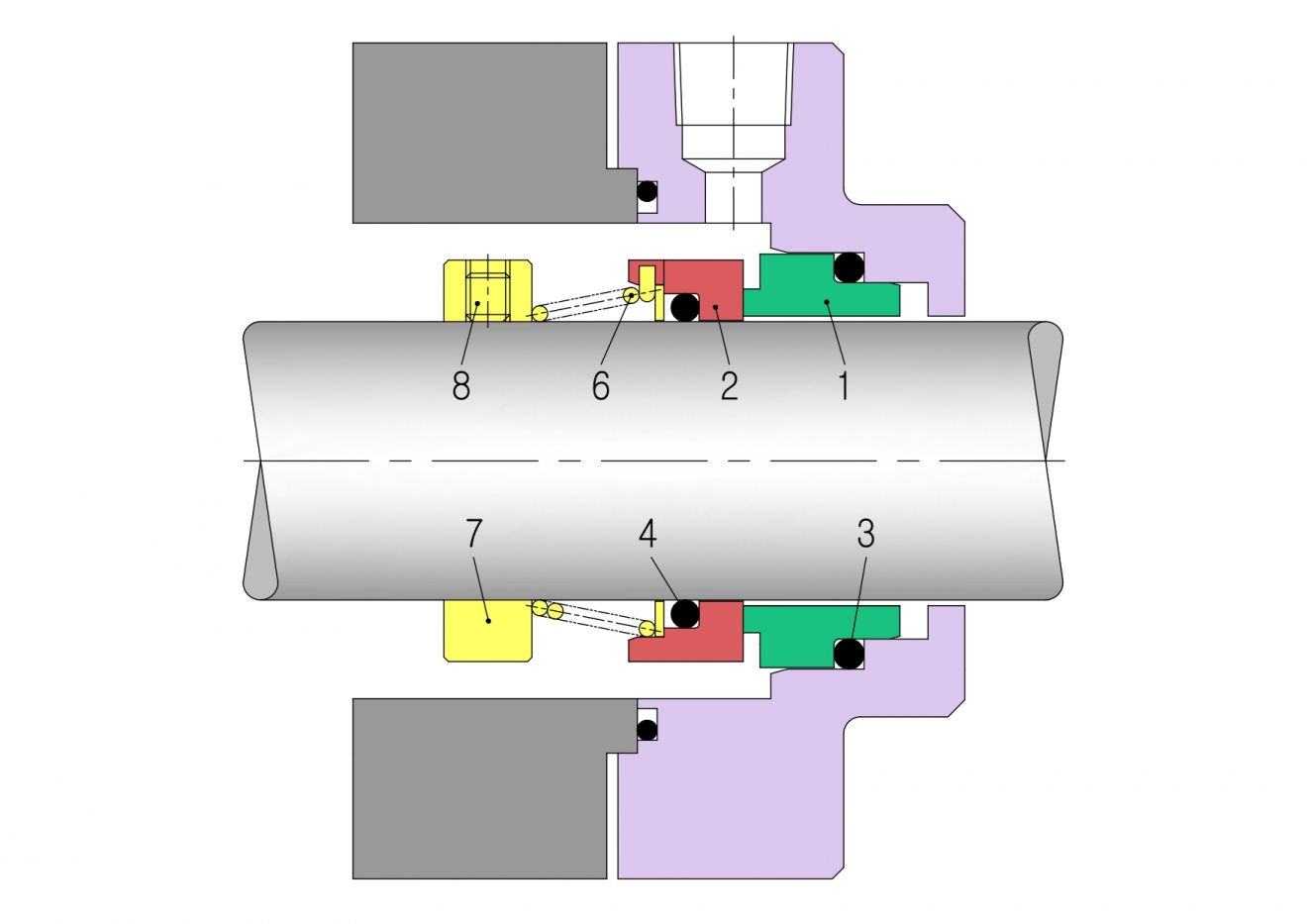

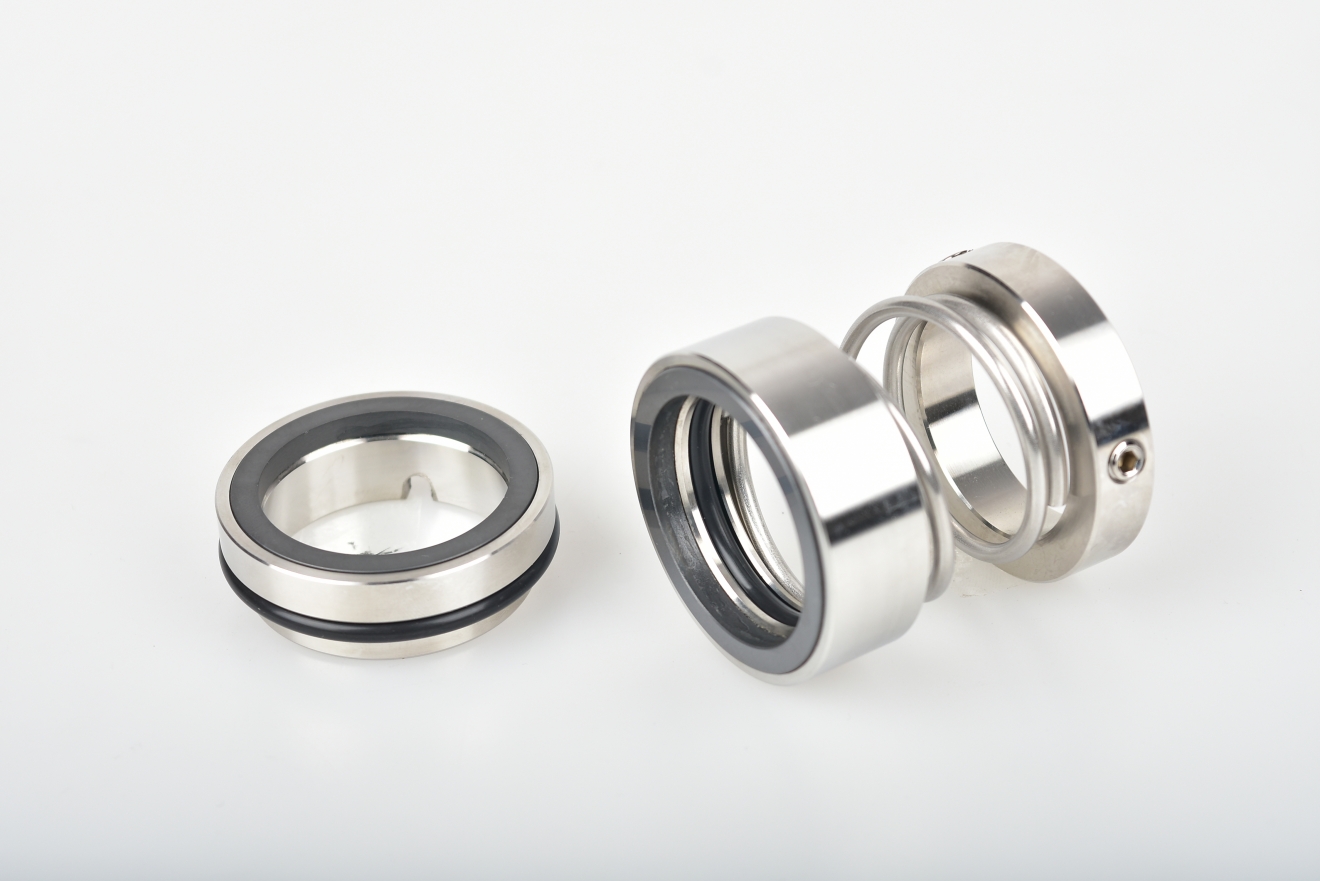

As the type CD1/CD2 is unbalanced seal having a form of spring drive, in case of considering the margin of corrosion for the components, this type can be selected. It can be applied to a variety of fluid pumping and suitable for the fluid having adrasive slurry. Moreover, cost saving is available due to it's simple mechanism.

• General industrial applications including chemical processing, food and beverage, petrochemical processing, pharmaceutical, wastewater and power generation.
• Mechanical drive design reduces slippage on shaft and sleeve to elipage on shaft and sleeve to eliminate galling and premature wear.
• Lapping process results in high precision finish with optimal flatness.
• Compact design permits use in all types of rotating equipment, centrifugal pumps.

• Temperatures : -40 ℃ to 200 ℃
• Pressure : 10 barG
• Viscosity : 500 cP
• Slurry : max. 7%

•   Compact Design
•   Elastomer O-Ring Secondary Seal
•   Mono Conical Spring Design
•   DIN 24960/ISO3069 Stuffing Box Fit
